PRODUCTS-Jiangyin Jinwan Alloy Materials Co., Ltd.

Position：Home / PRODUCTS

Specifications: Ø 9.5-76 mm, featuring highstrength, high hardness, and excellent wearresistance.

Model number	Status	Heat treatment	Tensile strength kg/mm²	Yield strength kg/mm²	Extension percentage (%)	Rockwell hardness B or C scale	Conductive percentage %IACS	OPERATE
C17200	A (TB00)		42-60	14-25	20-60	B45-85	15-19	Detail
C17200	H (TD04)		59-92	52-74	8-30	B88-103	15-19	Detail
C17200	AT (TF00)	3hr 315-330°C	116-141	91-123	3-10	C36-42	22-28	Detail
C17200	HT(THO4)	2-3hr 315-330°C	123-159	102-141	2-9	C36-45	22-28	Detail
C17510	A(TB00)		24-39	7-21	20-35	B20-50	20-30	Detail
C17500	H(TD04)		45-60	35-53	10/15	B60-88	20-30	Detail
C17500	AT(TF00)	3hr 480°C	70-91	56-70	10/25	B92-100	45-60	Detail

Specifications: 0.3-10 mm, featuring highelasticity, high electrical conductivity, andexcellent corrosion resistance.

Model number	Status	Heat treatment	Tensile strength kg/mm²	Yield strength kg/mm²	Extension percentage (%)	Rockwell hardness B or C scale	Conductive percentage %IACS	OPERATE
C17200	A (TB00)		42-55	14-22	30-60		15-19	Detail
C17300	1/4H (TD01)		63-81	52-74	3-25		15-19	Detail

We offer sheets and strips in variousthicknesses to meet the requirements ofprecision manufacturing and structural support.

Model number	Status	Heat treatment	Tensile strength kg/mm²	Yield strength kg/mm²	Extension percentage (%)	Rockwell hardness B or C scale	Conductive percentage %IACS	OPERATE
C17500	A (TB00)		42-60	14-25	20-60	B45-85	15-19	Detail
C17500	H (TD04)		63-92	52-74	8/20	B92-103	15-19	Detail
C17200	H (TD04)		63-88	52-74	8/20	B90-102	15-19	Detail

Suitable for a wide range of mechanicalstructures, with good machinability and highdimensional accuracy.

Model number	Status	Heat treatment	Tensile strength kg/mm²	Yield strength kg/mm²	Extension percentage (%)	Rockwell hardness B or C scale	Conductive percentage %IACS	OPERATE
OD385	A (TB00)		42-60	14-28	35-60	B45-85	15-19	Detail
HPP High Pressure Fresh Preservation Ring								Detail
Rock drilling machine wear-resistant sleeve								Detail

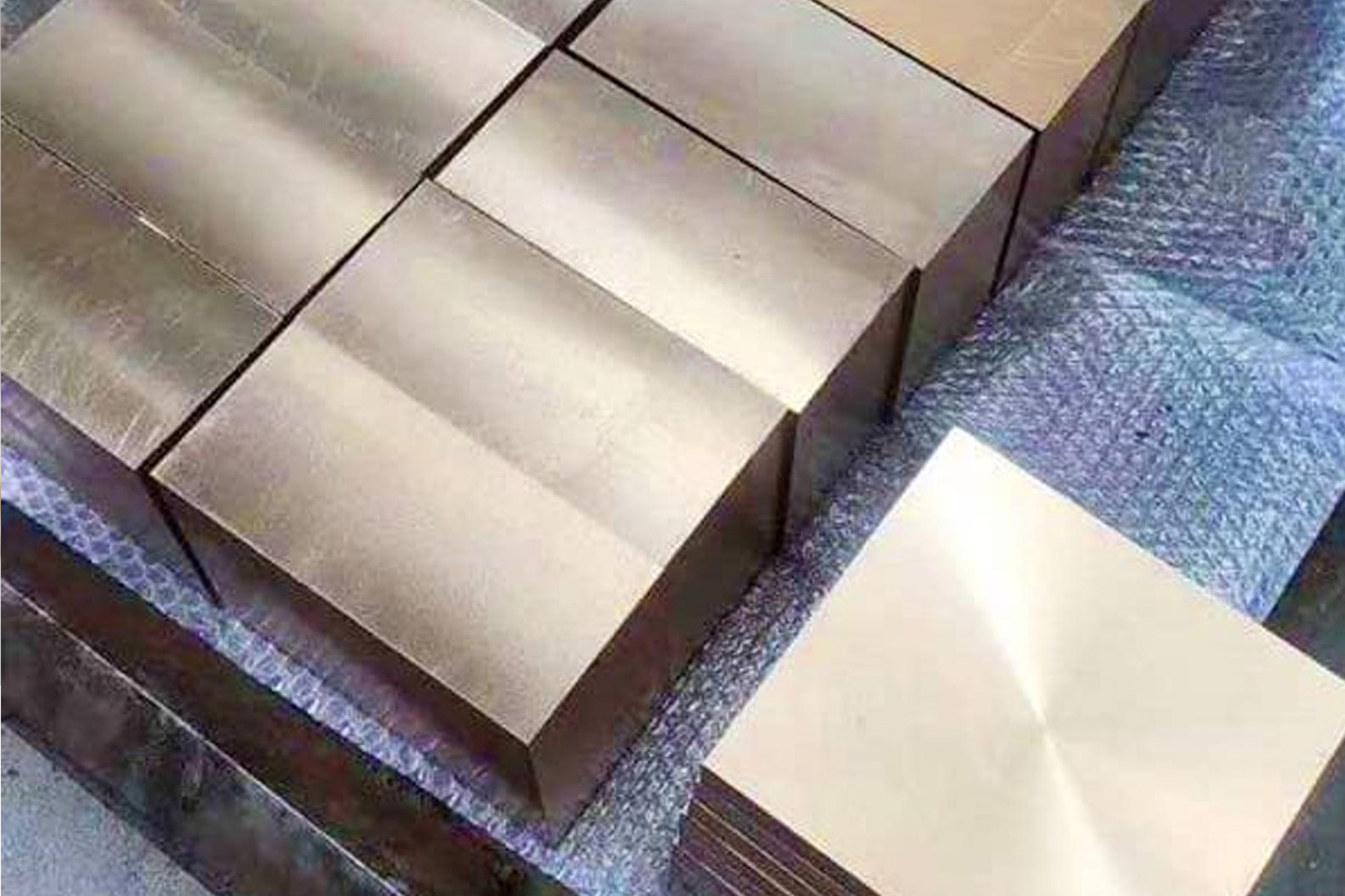

Specially used in mold manufacturing, we offercustom cutting services to improve materialutilization efficiency.

Model number	Status	Heat treatment	Tensile strength kg/mm²	Yield strength kg/mm²	Extension percentage (%)	Rockwell hardness B or C scale	Conductive percentage %IACS	OPERATE
Beryllium copper mold block	TF00	315℃/3h	116-141	91-123	3-10	C36-42	22-28	Detail
